Kansai International Airport: Engineering Ambition Meets Geotechnical Clayey Reality

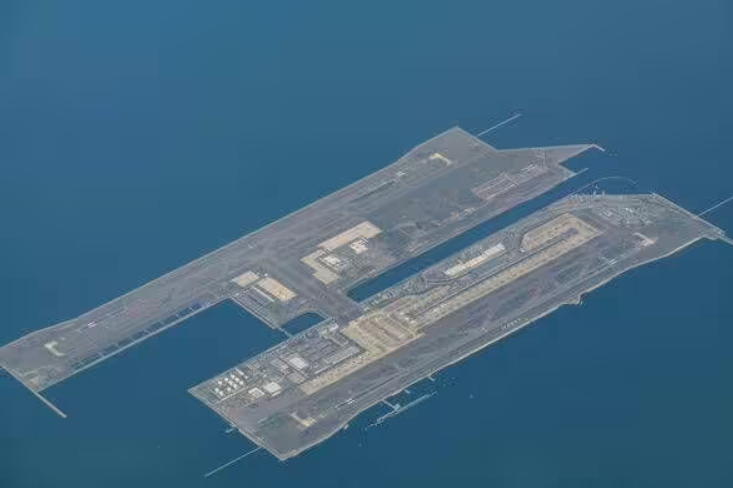

Kansai International Airport (KIX), one of Asia’s busiest aviation hubs, was constructed entirely on an artificial island in Osaka Bay. Opened in 1994, the airport spans over 2,600 acres across two man-made islands. Beneath this ambitious infrastructure lies a critical issue: the soft alluvial clay base has been steadily compressing under the weight of the airport, leading to progressive settlement. Since inception, the original island has sunk approximately 12.5 feet, while the newer expansion island has subsided by 57 feet.

To accelerate the soil consolidation process during construction, engineers installed over 2 million vertical drains and placed 200 million cubic meters of landfill. Despite these efforts, the natural compressibility of the clay has persisted, and the rate of subsidence has increased in recent years.

In 2018, Typhoon Jebi revealed the vulnerability of the airport’s infrastructure. The storm flooded the main terminal and left thousands stranded. The basement-level disaster response center was among the affected areas. This incident emphasized the risk of locating critical systems below grade on a sinking foundation and pushed engineers to reassess and adapt.

In response, real-time monitoring systems were installed to track subsidence. Strategic elevation of critical utilities and the reinforcement of seawalls have been implemented to mitigate future threats. Engineers also began injecting stabilizing materials into the subsoil to slow down further compression.

Kansai’s engineering challenges have guided future infrastructure development across Japan. Notably, Chubu Centrair International Airport near Nagoya applied these lessons by selecting more stable ground and placing critical infrastructure above flood levels. While the complete prevention of subsidence is unlikely, consistent monitoring and adaptive design have allowed KIX to remain operational and safe.
