Space-Based Insights: Early Signs of Kakhovka Dam Collapse Detected

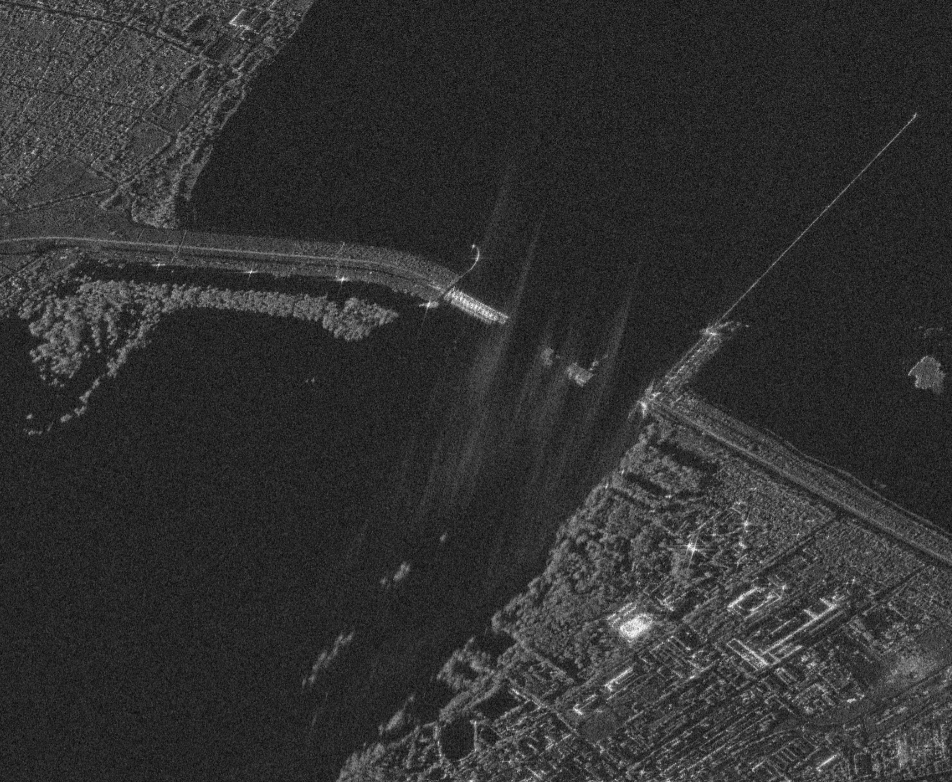

*Satellite image of the Kukhova Dam, Ukraine. Source: TU Delft (image by Umbra Space)*

The collapse of the Kakhovka Dam in Ukraine on June 6, 2023, was a catastrophic event that devastated water management systems and hydroelectric power generation. While the exact cause has been linked to explosions during the ongoing conflict, new remote sensing research reveals critical structural deformations may have begun years before its collapse, offering vital insights into infrastructure monitoring and risk assessment.

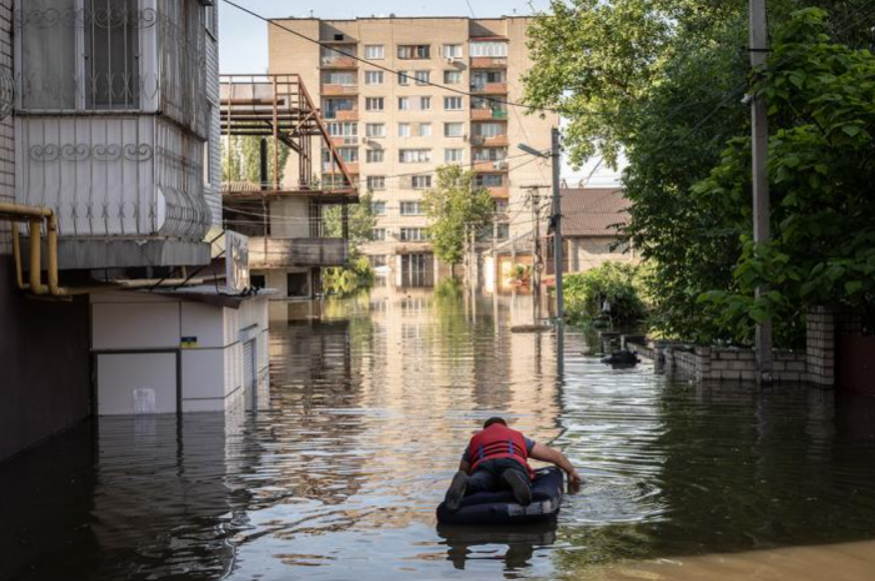

Photos offering a glimpse into the devastating aftermath of the Nova Kakhovka dam breach, Source: European Commission (image by Alberto Lores)

Early Signs of Structural Instability

Utilizing InSAR (Interferometric Synthetic Aperture Radar) technology, researchers detected subtle deformations in the dam as early as June 2021, long before the war and eventual collapse. This advanced remote sensing tool measures ground and structural movement with millimetric precision by analyzing radar images captured from orbiting satellites. The research, conducted by a team of international experts, highlighted displacements in various dam segments that indicated instability was already underway.

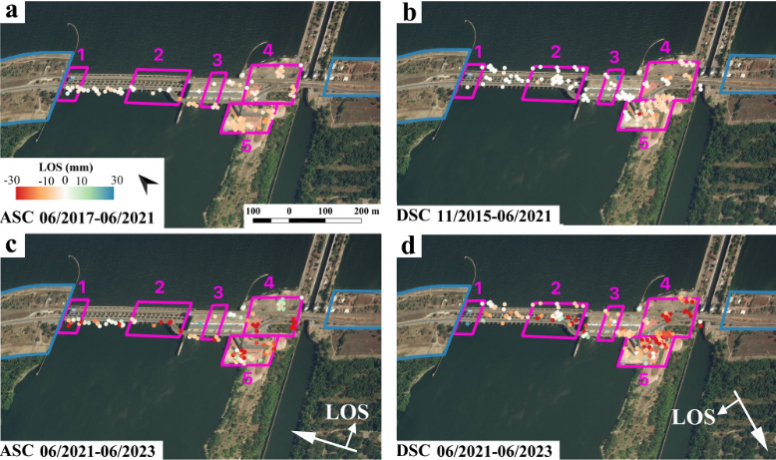

Pre-event velocity maps which could serve as warnings and breach detectors are shown in (a) and (b) for ascending and descending tracks, respectively, while (c) and (d) display velocity maps after deformation acceleration began for both geometries. Source: Tavakkoliestahbanati, A., Milillo, P., Kuai, H. et al. Commun Earth Environ 5, 145 (2024). https://doi.org/10.1038/s43247-024-01284-z

The findings suggest that neglected maintenance and operational disruptions, exacerbated by the war, likely worsened the dam’s condition over time. While the collapse has been attributed to a possible explosion, the research highlights pre-existing damage mechanisms that may have played a significant role in destabilizing the structure.

The Role of InSAR in Proactive Infrastructure Monitoring

The Kakhovka Dam study underscores the potential of spaceborne technologies like InSAR for proactive monitoring of critical infrastructure. By capturing and analyzing ground movements over extended periods, this technology provides early detection of deformations, allowing stakeholders to address structural risks before they escalate into catastrophic failures.

This case serves as a powerful reminder of the importance of continuous infrastructure surveillance, particularly in regions facing geopolitical instability and climate challenges. Early warnings can inform timely maintenance, forensic investigations, and risk mitigation strategies, ensuring the long-term stability of vital structures like dams, bridges, and levees.

The findings from the Kakhovka Dam collapse highlight the need for advanced monitoring tools like InSAR to safeguard critical infrastructure globally. Proactive risk assessment and timely intervention could prevent future failures, saving lives and resources.

A reminder of the catastrophic dam breach is discussed in the following video.
