State-of-the-art drilling technology used in a £3.2bn project by Keller Sponsored

Woodsmith Mine is being developed by Sirius to extract Polyhalite for use as an agricultural fertiliser. Sirius is in the process of sinking production and service shafts down to the potash deposits, which are located 1.5km below the Earth’s surface. The production shaft is one of the deepest in Europe at 1530m. Diaphragm walls have been installed at the service shaft to ensure the passages are stable and waterproof and Keller have installed the piling, which will be bolted to the mining head gear which must be constructed underground for environmental reasons.

“We knew the rock strata was quite hard due to previously working within the mine shaft, and coupled with the fact that DTHH compressed air drilling wasn’t allowed in the shaft, we knew our rock augering systems would struggle," said Shaun Davison, Keller’s General Manager for Piling and Rail.

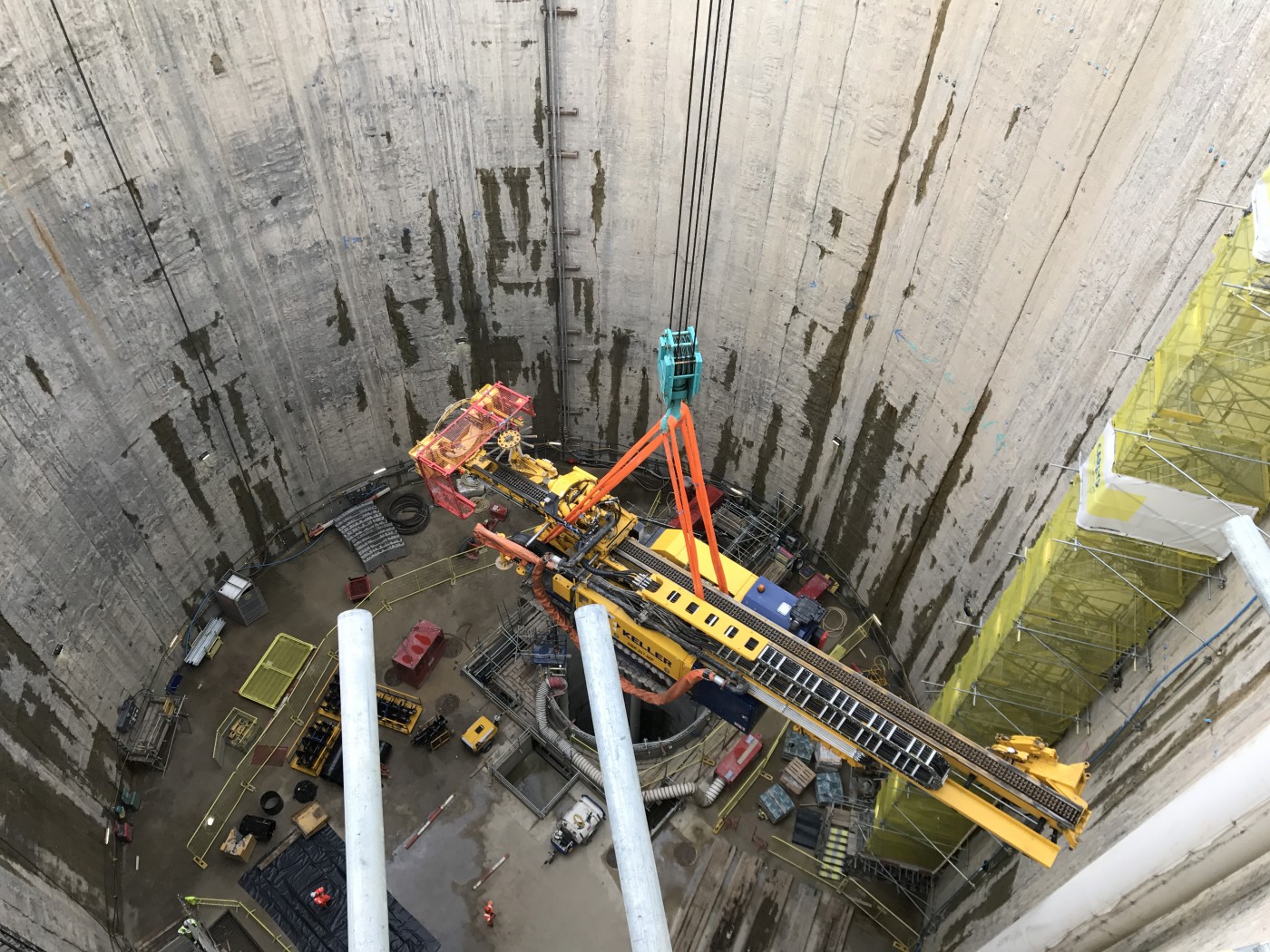

Using the new PRA-Sline rock augering system, provided by Stratum Drilling Solutions, is allowing them to drill through hard sandstone to install piling to support the mining head gear at the £3.2bn Woodsmith Mine, near Whitby. A new Hutte 207 rig is installing the six 750mm diameter cased and bored piles to 20m depth below the piling platform, all this working at 46m below ground level.

“We wouldn’t have been able to carry out this job without these augers and the Hutte 207.”

As well as working with Stratum, Keller have worked closely for the last six months with engineers Arup, main contractor Careys Civil Engineering and mine owners Sirius Minerals to come up with the solution for this major infrastructure project.

Source: Keller
