Rion Antirion Bridge: Views of the piers, in the dry dock, floating, in place and of their interior
|
Photos provided by G. Konstantakopoulos, N. Stathopoulos, J. Simeonoglou. Texts by G. Konstantakopoulos. Photos taken in October 2001
Want to be informed of
updates for FREE?
|

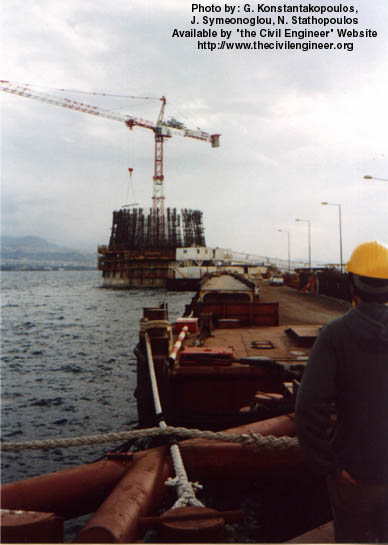

Figure 1: View of the bridge pier, currently under construction,
that is currently floating near the coast. Access to the pier is
through the ship illustrated in the figure. The ship is modified
to allow transportation of the reinforcements using trucks.
|
* Please refer to the site when you use this material *
|
More on the Rion Antirrion Bridge?
|

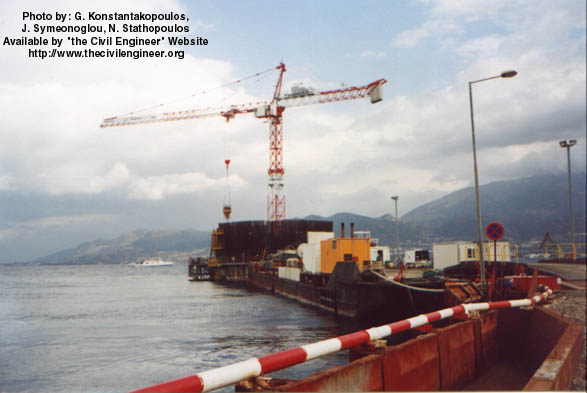

Figure 2: Another pier of the bridge
|

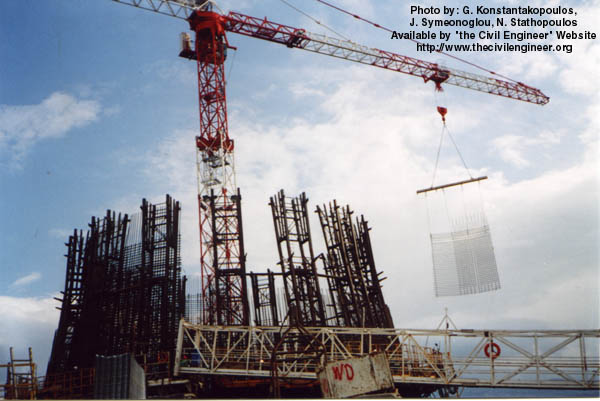

Figure 3: Reinforcement placement in the pier, according to the design. The reinforcement
has previously being transported with a truck next to the pier.
|

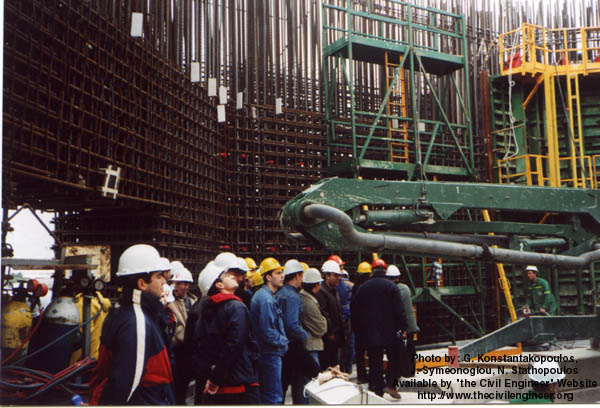

Figure 4: Interior of the pier of Figure 6. The thickness of the reinforced wall is approximately
2.0m
|

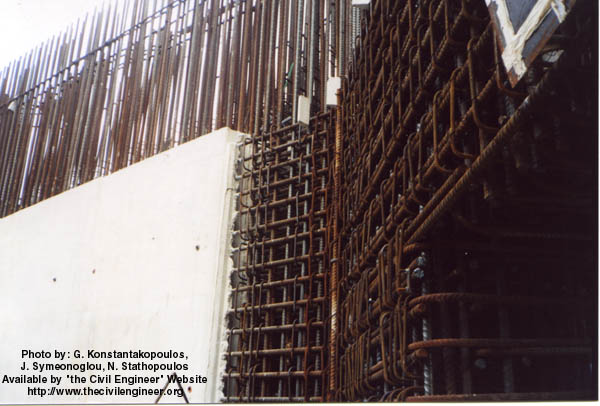

Figure 5: Interior of the pier. Detail of the pier wall
|

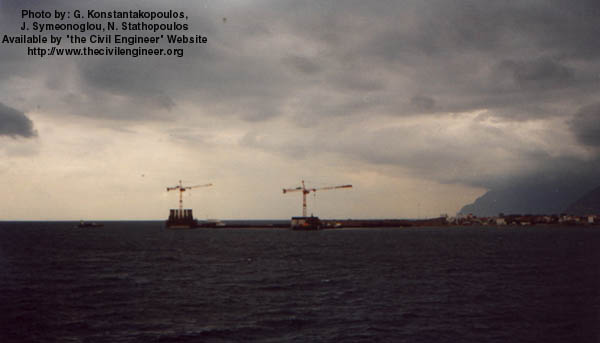

Figure 7: View of the piers that are under construction close to the coasts. The right one is the
one illustrated in Figure 4 and 5.
|

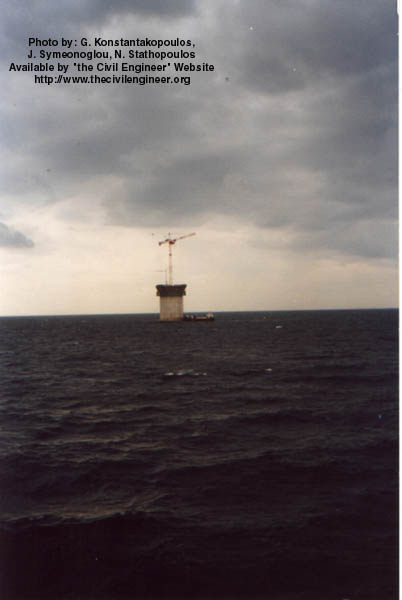

Figure 6: View of a pier that has currently touched the
bottom of the sea.
|
Figure 8: Footing of a pier, currently under construction, in the dry dock.
|
Figure 9: Footing of a pier, currently under
construction, in the dry dock.
|
