View of the 7.5 m deep excavation
View of the excavation

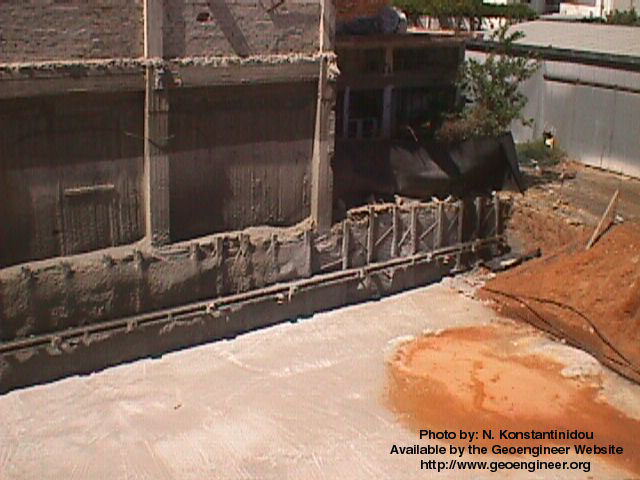

| View of the excavation after shotcrete |

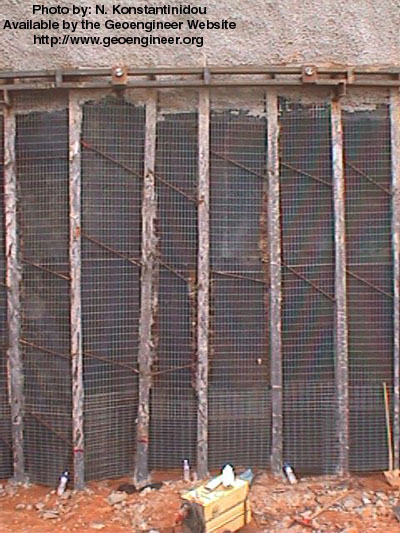

View of the excavation.
Steel reinforcement is used
between the H-beams.
Steel reinforcement is used
between the H-beams.

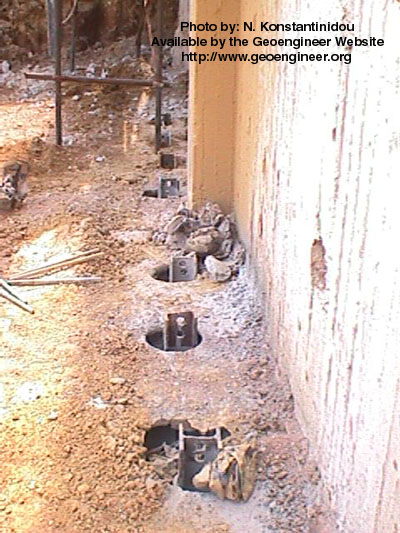

Series of
H-beams at a
spacing of 0.9 m
placed into the
excavated holes
very close to an
existing structure.
H-beams at a
spacing of 0.9 m
placed into the
excavated holes
very close to an
existing structure.
Predrilling using a continuous
flight auger before
placement of the H-beam
that will retain the excavation
having a maximum height of
7.5 m. The length of the
piles ranges between 8 and
10 m, having always an extra
2.5 m below the excavation.
flight auger before
placement of the H-beam
that will retain the excavation
having a maximum height of
7.5 m. The length of the
piles ranges between 8 and
10 m, having always an extra
2.5 m below the excavation.
| Want to be informed of updates for FREE? |
| Deep Excavation supported by Berlinoise-type system in Chania, Greece |
 | |  | |  | |  | |  | |  | |  | |  | |  |
Photos and information provided by N. Konstantinidou, available by the Geoengineer website

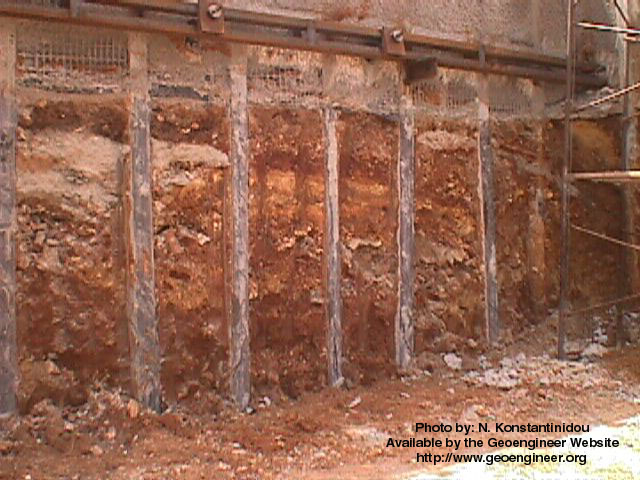

View of the excavation,
prior to installation of
steel reinforcement.
prior to installation of
steel reinforcement.
| | | | | | | | | | | | | | | | |
| CORPORATE SPONSORS become a sponsor |
Placement
of shotcrete
of shotcrete
| The photos below were provided by Nicoletta Konstantinidou as part of her thesis on Berlinoise-type deep excavation project in Crete, (University of Crete, Greece). The photos illustrate some stages of construction of these type of walls. |
