This is a web-based version of the cover story of the March 2004 AEGNews (magazine of the Association of
Engineering Geologists) written by Dimitris P. Zekkos and Adda G. Athanasopoulos. The web-based version provides
more photos (and colored) than the article and contains less text. Click photos below to enlarge them.
Material included in this page can be referenced as:
Zekkos, D.P., Athanasopoulos, A.G. (2004), "Milos island: Working with earth for 9000 years", AEG News, March 2004
issue, vol. 47, issue 1.
To read the full text of the article as it appeared in the AEGNews, right click here and "save as...".
Introduction
Milos belongs to the island complex of Cyclades in Greece and has a total surface of 151sq. km (Figure 1). Five
thousand five hundred inhabitants are currently scattered in 7 towns but life on the island has been strongly
influenced by the geologic environment and the exploitation of rocks and minerals for more than 9000 years.
Geologic features of Milos
Milos is, almost entirely, a volcanic island. Volcanic activity in the island started 2-3 million years ago and ceased
90,000 years ago. Extinct volcanoes can still be seen at Firiplaka while the circular gulf of the island is considered to
be a submerged caldera. There are also numerous locations around the island known for gas eruptions and hot
springs suggesting volcanic activity.

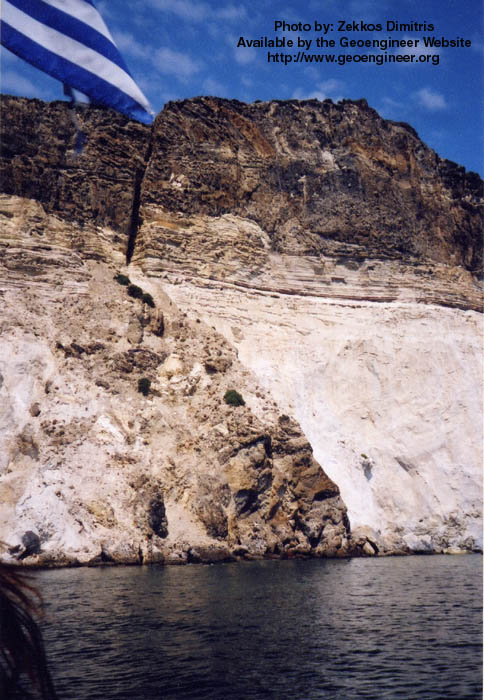

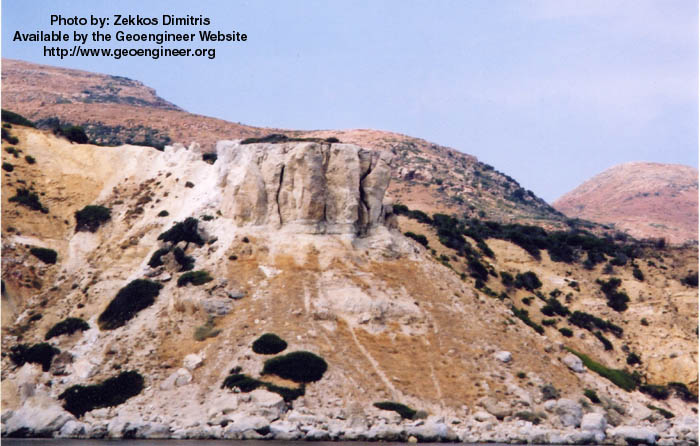

The different geologic conditions and the great variety of rocks form more than 70 unique beaches. The following
figures illustrate some interesting geologic features that can be seen in the island:
As early as 5500 BC obsidian and caolinite from Milos was found in Middle Neolithic settlements in Attica (Pantelidou
Gofas, 2000). However, exploitation of obsidian took place in Milos at least since 7000 BC and Milian obsidian was
found by archaeologists in Crete, Peloponnisos, Egypt and Southern Europe. The Neolithic civilizations used
extensively the black volcanic glass to manufacture weapons and tools, examples of which can be seen in the
archaeological museum of Milos (Figure 7). There were three main locations of obsidian mining during this period. The
Neolithic workers had a strict quality control on obsidian products. Arrowheads, spearheads and knifes with the
slightest deficiencies were dumped and were never used. In Demenagaki, there is an area of 20 m and 1 m thick with
obsidian remains.

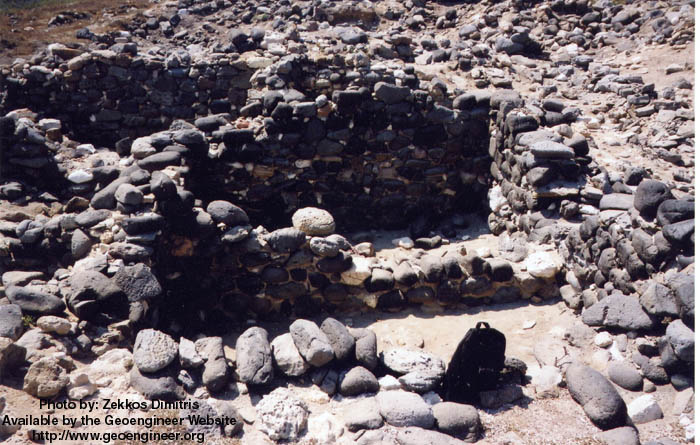

The first settlers of the island were certainly engaged with the commerce of obsidian. Around 3300-2300 BC some of
the settlements evolved to a large center known today as Phylacopi, but the city was burned in around 1600 BC by
invaders. Phylacopi was this time rebuilt with strong walls. The walls reached a thickness of 3.0 m near the main
entrance and were built using large stones of andesite and lava joined carefully together with volcanic ash. The Stone
Age workers knew that andesite was strong and resistant to weathering, and therefore it was a good material to be
used for the construction of walls.
Around 1470 BC, the eruption of the Santorini (also known as Thera) volcano, famous for the destruction of the
Minoan civilization, probably caused the destruction of the city of Phylacopi. The city of Phylacopi was rebuilt again and
was finally abandoned in 1100 BC. A new settlement was established, near the village of Klima to the North of the
island.
The new settlement near Klima evolved rapidly. Construction of the city starts around 1000 BC. Arts flourish and the
craft of ceramics using the local clay are considered one of the finest examples of ceramic art during the 8th century
BC. Milos has participated in the war against the Persians, suffered during the Peloponnesian war (5th Century BC),
became part of the Greek Macedonian empire (4th century BC) and eventually was captured by the Romans.

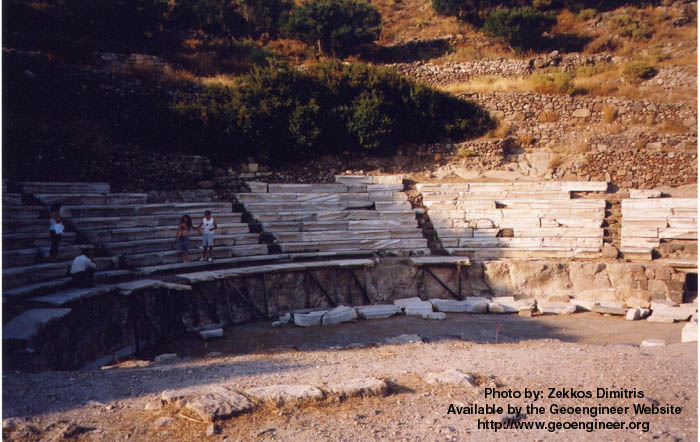

The increasing importance of mineral trade during the Roman years brought wealth to the inhabitants. Wonderful
statues of this period can be seen in the Archaeological museum, and great buildings were constructed like the
marble amphitheatre. During the Roman years Milos traded:
- Bentonite for the Roman Empire. Bentonite was used as soap and as a base for cosmetic products, a use
known even by the Neolithic period. The use of clay was also recommended to heal the wounds because clay
sips the fluids and impedes the infection of the wound. - Sulfur, used in medicine
- Caolinite, used by artists to create the white color
- Dust from pumice, used to polish marbles, mosaics and ceramics
- Alunite
During this period the city near Klima prospers but in the 5th to 6th century AD it is destroyed by an earthquake. The
harbor of the city is now well below the sea level, partly due to damage during the earthquake and partly because
this portion of the island sinks due to tectonic movement.

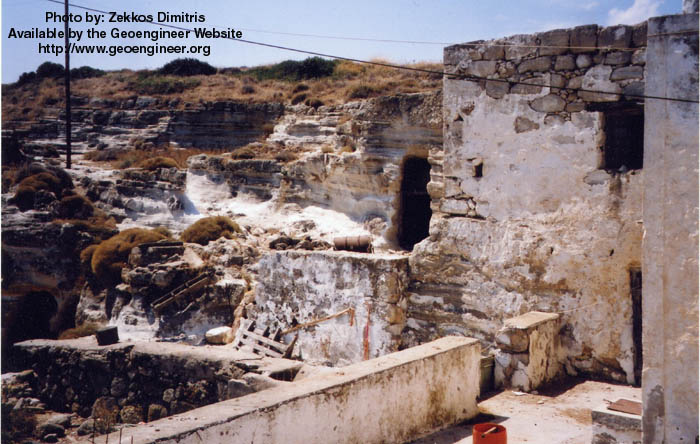

At first, the ancients were mainly exploiting surface exposures. These resources were later exhausted and the
ancients excavated mines. Extensive and deep ancient tunnels of alunite were found as well as many roads, walls
and foundations suggesting an extensive exploitation of the deposit. Alunite was used in medicine and also in
coloring of textiles. In Aghia Kiriaki one can still see remains of tanks used to process alunite.

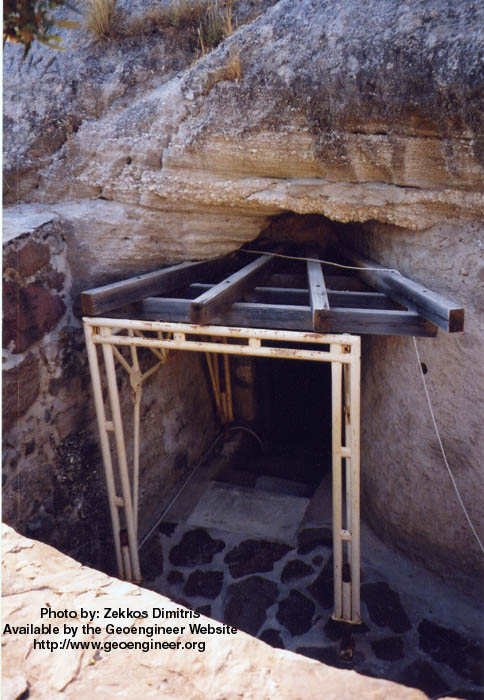

Christianity made its appearance to the island during the Roman years. The Christians, whose religion was not
accepted by the Roman emperors, constructed catacombs in the soft pumice. These were long tunnels excavated in
the soft rock where the Christians could hide, practice their religion and bury their dead. The catacombs of Milos are
among the biggest in the world and only a very small portion can be visited today.
The island became part of the Byzantine Empire and later on was ruled by the Venetians and Turks. In the middle of
the 18th century the geologic environment again played an important role in the history of the island. Earthquakes,
noxious gases escaping from the ground, floods and malaria, forced the inhabitants to resettle in Castro and Plaka.
In 1862 the Greek government awarded the first permit for mining operations to exploit sulfur. By 1890 the production
of sulfur reached 15000 tons per year (Oikonomopoulos, 1998). Extraction and exploitation of other minerals became
soon possible. Every year, rich deposits of bentonite (used in drilling operations), caolinite (ingredient of paper,
rubber), perlite (for insulation) and pozzalana (cement industry) but also sulphur, baryte and gypsum are exported.
Milos is today the largest production center of bentonite and perlite in the European union.
The habitants of Milos were always finding ways to improve the quality of their life using different geologic materials.
Even today, the visitor can observe practices that likely come from the early past. In various locations old residential
houses are partly masonry structures (using local stone) and partly are excavated in rock.
Also chambers are excavated in the soft rocks near the sea and are used to protect the fishing boats during winter.
The last years some of these chambers have been modified and are rent to tourists.
In the mining museum one can see tools that were used in the mines during the 19th and 20th century. These tools
were simple and very similar to those that the ancient Greeks were using. In the same museum there is also
documentation of the experience-based approach used in mining. A retired worker vividly describes that in each
tunnel there was one worker with the task of placing small wooden wedges in any fractures observed along the
tunnel. If any of these wedges fell on the ground, it meant that the tunnel was deforming significantly and the
workers were ordered to evacuate. One can assume that similar simple observation-based methods were used in the
ancient mines, as well.
Conclusions
Life on Milos has always been strongly associated with exploitation of rocks and minerals. The geologic processes
have affected the habitants in many constructive and destructive ways. Nowadays, in addition to the production of
useful minerals, the island of Milos provides unique opportunities to observe interesting geologic phenomena and
enjoy the beauties of the geologic environment. For that reason Milos is often referred to as "the geologic lab of
nature".
References
- Oikonomopoulos, I.N.(1998), Mining history of the island of Milos, talk given at the inauguration of the Mining
museum of Milos. - Pantelidou Gofas, M. (2000), Neolithic attica, Archaeological Society at Athens.
- Plimer, I. (2000), Milos, geologic history, KOAN editions (in greek).
Additional Internet Resources
Geoengineer Website
Copyright © 2004-2006 Elxis s.a. All rights reserved.
 | |  | |  | |  | |  | |  | |  | |  | |  |
| Center for Integrating Information on Geoengineering |
| Want to be informed of updates for FREE? |
Milos island: Working with earth for 9000 years
| HAVE YOUR BANNER HERE! Click for more |

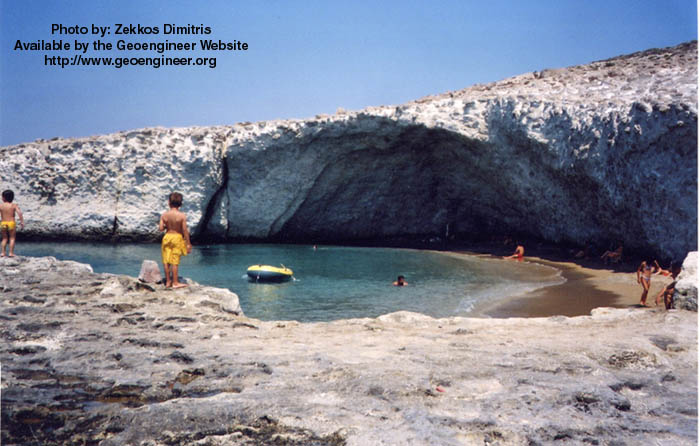

Figure: The small beach of
Alogomandra, has a very nice natural
gulf and cave on lahar.
Alogomandra, has a very nice natural
gulf and cave on lahar.
Figure: Volcanic ash gives the white
color that makes Sarakiniko one of the
most popular beaches in Milos
color that makes Sarakiniko one of the
most popular beaches in Milos
Figure : Faulting along the
Southern coasts of Milos
Southern coasts of Milos
Figure : Progressive fracturing of hard
stiff rock.
stiff rock.
Figure : Closer view of the lahar in
Alogomandra beach
Alogomandra beach
Figure : Obsidian tools from Milos. Today it is forbidden to
buy or sell any piece of Milian obsidian, as it could be of
archaeological importance.
buy or sell any piece of Milian obsidian, as it could be of
archaeological importance.
Figure : Remains of a Neolithic building in Phylacopi. Lava
blocks and andesite were used for stone and were
bonded using volcanic ash (rucksack for scale).
blocks and andesite were used for stone and were
bonded using volcanic ash (rucksack for scale).
Figure: The ancient theatre of Klima.
Figure : Vasilis Bardakis stands in
front of the city walls of the city of
Klima in the vicinity of the ancient
theatre.
front of the city walls of the city of
Klima in the vicinity of the ancient
theatre.
Figure : Recent mine in caolinite
Figure : The entrance of the catacombs
Figure : A window on the rock
provides clean air and sun in the
rooms below.
provides clean air and sun in the
rooms below.
